5PCS Shielded RJ45 Female to Female Field installable Connector. Provides Feed-Through Cat5/5e/6 ethernet connectivity for Data and PoE in Industrial environments.
9 sold in last 24 hours
- The shielded industrial panel mount bulkhead includes Outgoing terminal that meets IP67 Water Protection.the two network cables are connected to the connector through the waterproof head, and can be used as a cable extension cable.
- The Waterproof RJ45 Connector are IP 67 Compliant. Prevented from temporary immersion for 30 min in 1 meter depth of water. Prevent the network parts from moisture for quality connections.
- Shielded RJ45 female to female field installable connector. Provides feed-through Cat5/5e/6 ethernet connectivity for data and PoE in industrial environments.

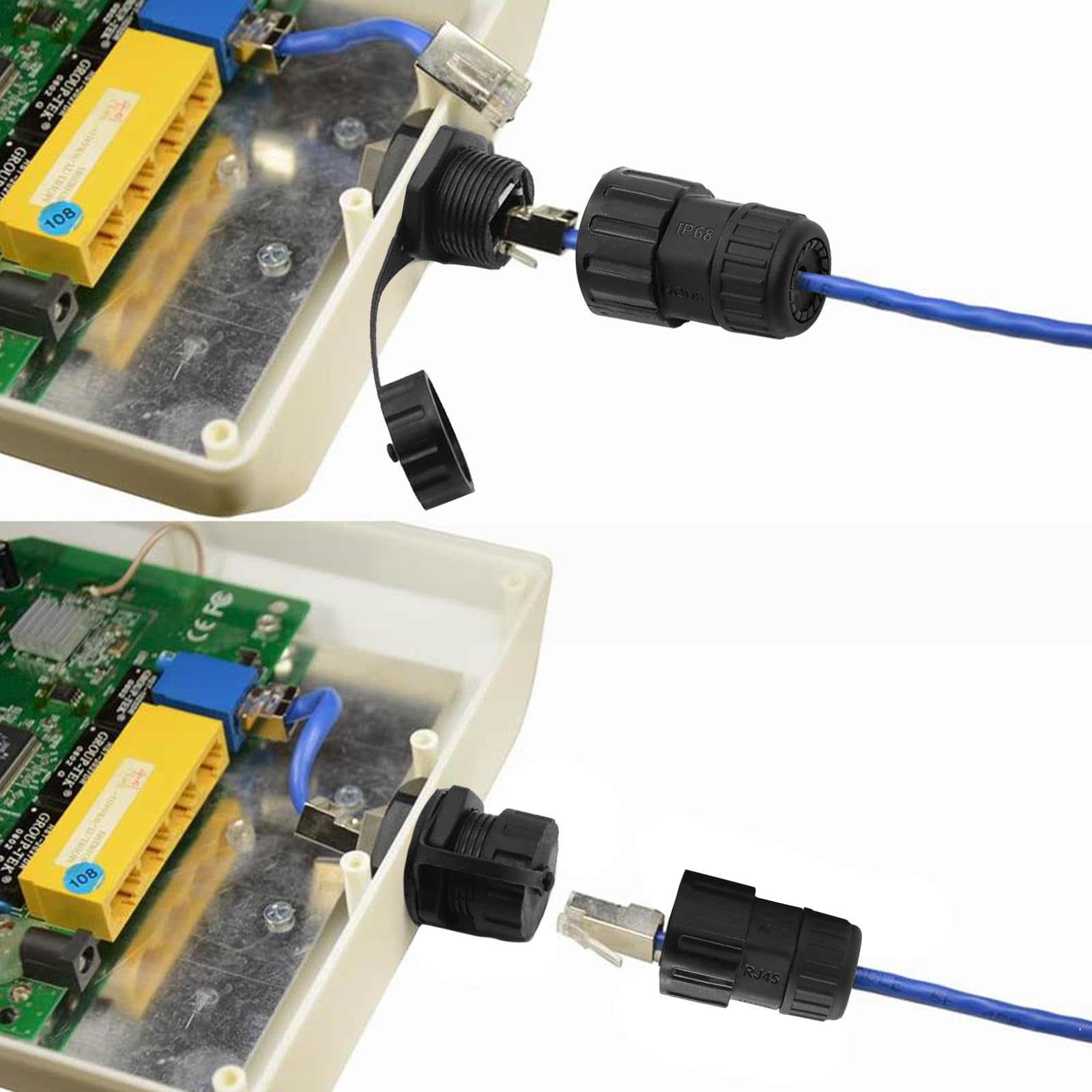

- Easy installation:No soldering, no installation tools, just plug the standard crystal head directly for quick installation.
- Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product,
Tags |
Estimated shipping
Select a product to estimate shipping.Waterproof CAT6 RJ45 Female to Female LAN Ethernet Network/Extension Coupler/Waterproof RJ45 Connector with Shield Used to connect two RJ45 cables together, Make two RJ45 cables work as one cable Straight through configuration
The waterproof connectors are sealed and ready to be installed in your case.
PROTECTION: IP68(Waterproof and dustproof)
COLOR: Black
MATERIAL: nylon PA66 + Metal
The casing is made of nylon PA66 with high-temperature resistance( -20° C - 110° C). The sealing element is Silicone Ring with a perfect waterproof level
CONNECT PORT: RJ45
WORKING TEMPERATURE: -20°C-110°C
SIZE: 2.5 in × 1.1in
WEIGHT: 24g
WATERPROOF RING: Silicone Ring
CONNECTION METHOD: plug the network cable at both ends
THREAD: M20
WATERPROOF GRADE
IP68 Waterproof / Moisture-proof / Dust-proof
The casing of our waterproof cable connector is made of nylon PA66 with high-temperature resistance( -20° C - 110° C); The inner conductor is copper core filling for better abrasion resistance and electronic conductivity; The sealing element is Silicone Ring with a perfect waterproof level, far more secure than another RJ45 inline ethernet coupler female to female

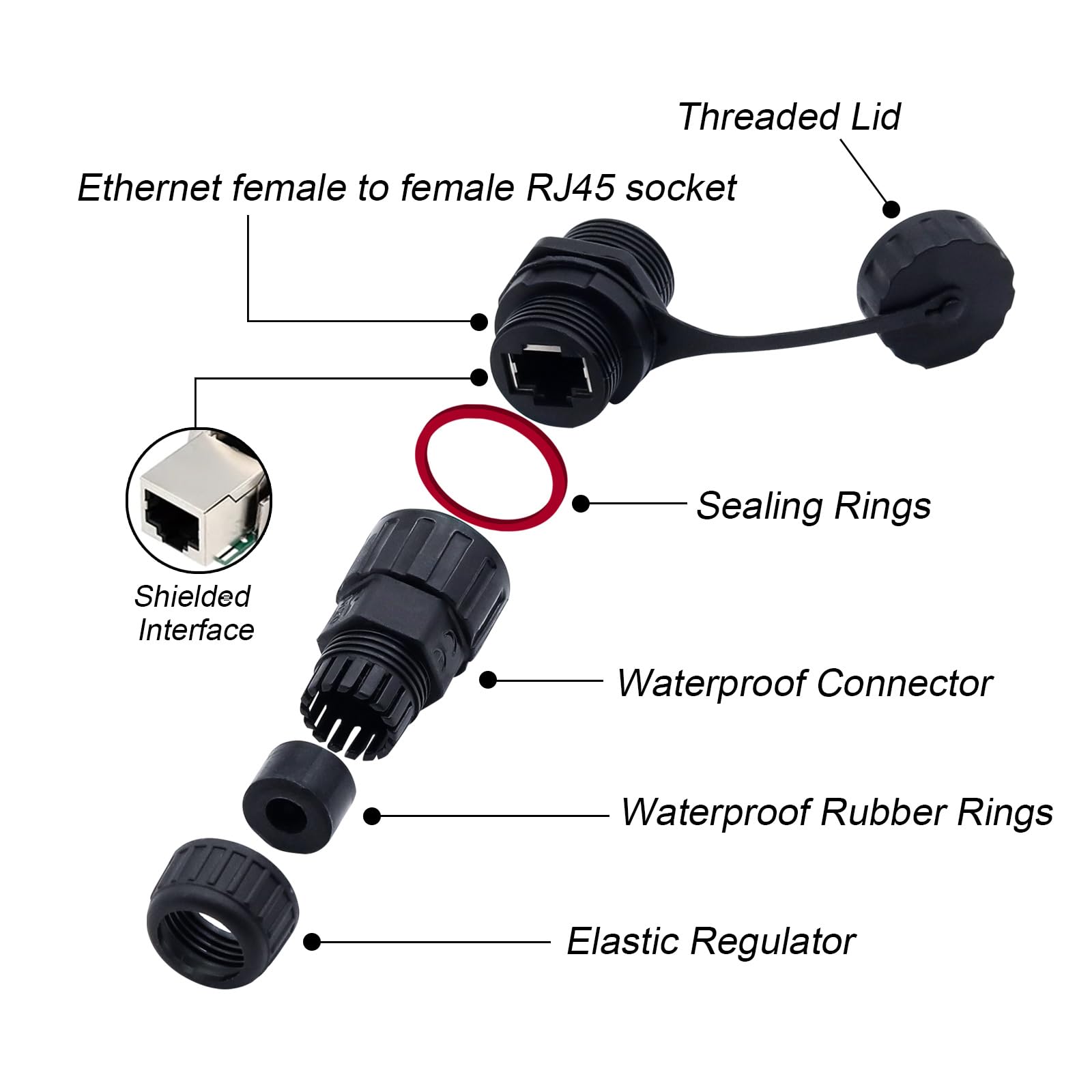

Waterproof RJ45 Coupler
SILICON RING
Silicon rings and clamping nuts provide the perfect waterproof and excellent sealing
It's great for use in marine, warehouse, or any wet environment. It also has potting inside of it to prevent any water intrusion in case the cable breaks or someone forgets to put the seal-cap back on
CAT6 RJ45 Connector
Cat6 RJ45 inline ethernet coupler female to female can provide up to 10Gbps transmission speed in 250MHz bandwidth, and it is suitable for applications with a transmission rate of 1Gbps
Great suitable for Outdoor LAN equipment, CCTV (closed-circuit monitor series), factory automation control, wireless bridge, etc
Industrial grade shielded connector
This Ethernet coupler is miniaturized and saves installation space.
Product details
| Main Specification | |
|---|---|
| Utilizare recomandată pentru produs | Moisture Protection or industrial ethernet connections or cable extension or quality assurance |
| Producătorul | YIOVVOM |
| Număr de unități | 5 Numărare |
| Specificații Met | IP 67 |
| Tip cablu | RJ45 |
| Sexul conectorului | Femei-la-Femeie |
| Marca | YIOVVOM |
| Modele de telefon compatibile | Nu există modele de telefon compatibile |
| UPC | 774049845020 |
| Numărul de elemente | 5 |
| Denumire model | H1936A |
| Dispozitive compatibile | Proiector |
| Culoare | Negru |
| Tip conector | RJ45 |
| Caracteristici speciale | Computer exterior |
| Product information | |
| Categoria cablu Ethernet | Pisica 6 |
| Frecvenţă | 250 MHz |
| Tipul de pachet pentru clienți | Sealed in anti-static bag or coiled in protective tubing |
| Technical Details | |
| Numărul părții | H1936A |
| Model | H1936A |
| Rata transferului de date | 1000 megabiți per secundă |
| Număr de pini | 8 |
| Item details | |
| Utilizare în exterior | În aer liber or Interior |
| Others | |
| Tip de produs | Cat 5e Cables |
| Alte caracteristici speciale ale produsului | Computer exterior |
| Forma elementului | Rotund |
