uxcell 6pcs Combination Drill Tap Bit Set 1/8-40 BSW to 3/8-16 BSW High-Speed Steel 1/4" Hex Shank Titanium Coated Screw Threading Drilling Tapping Tool Kit
12 sold in last 24 hours
- Combination Drill and Tap Bit: Thread size: 1/8-40 BSW, 5/32-32 BSW, 3/16-24 BSW, 1/4-20 BSW, 5/16-18 BSW, 3/8-16 BSW. Can process both through holes and blind holes. Comes with a sturdy plastic box which is lightweight and durable, easy to store and organize.
- 3-in-1 Combination: The 3-in-1 combination drill and tap bit set can complete hole drilling, tapping, and countersinking. Three processes in one, one-step operation, greatly saving processing steps, improving work efficiency, and providing accurate processing results.
- Special Design: Self-centering point, do not need assistant center drilling or center punching. Quick change 1/4-inch hex shank can be used on power tools more easily and securely. A tapered end on hex shank can prevent excessive tapping. It exceeds the tap to prevent thread breakage from over-drilling.
- 4341 High Speed Steel: The high speed steel screw taps run at high speeds and generate threads quickly and efficiently, offering high hardness, wear resistance, and good toughness. Titanium coating provides excellent corrosion resistance, and reduces the coefficient of friction for smoother tapping.
- Tips: Works with drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps. Machine taps are suggested to be used with tap collets with overload protection. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.
Estimated shipping
Select a product to estimate shipping.
Hex Shank Size: 1/4"

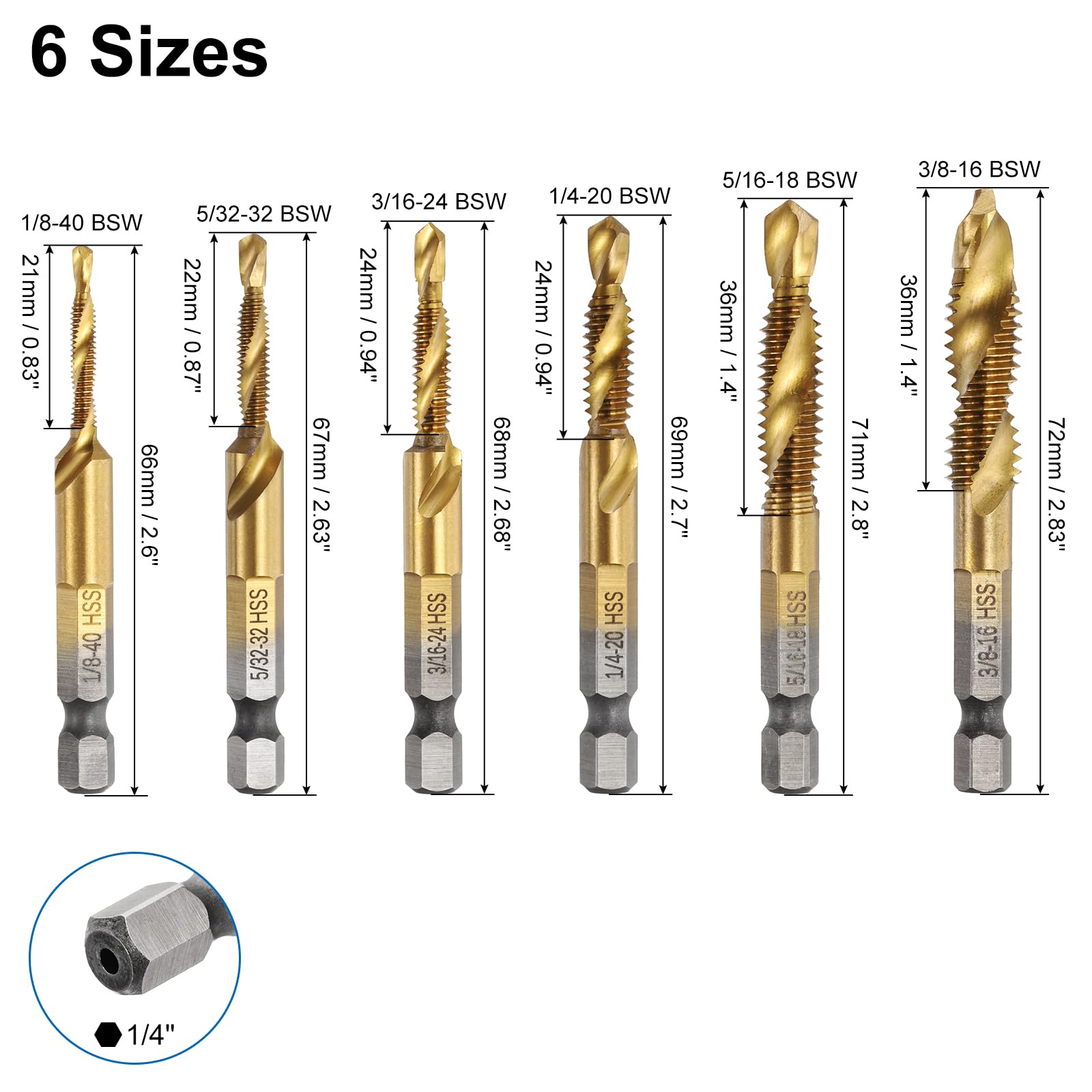

Thread Size: 1/8-40 BSW, 5/32-32 BSW, 3/16-24 BSW, 1/4-20 BSW, 5/16-18 BSW, 3/8-16 BSW
Drilling + Tapping Length: 21mm / 0.83", 22mm / 0.87", 24mm / 0.94", 24mm / 0.94", 36mm / 1.4", 36mm / 1.4"

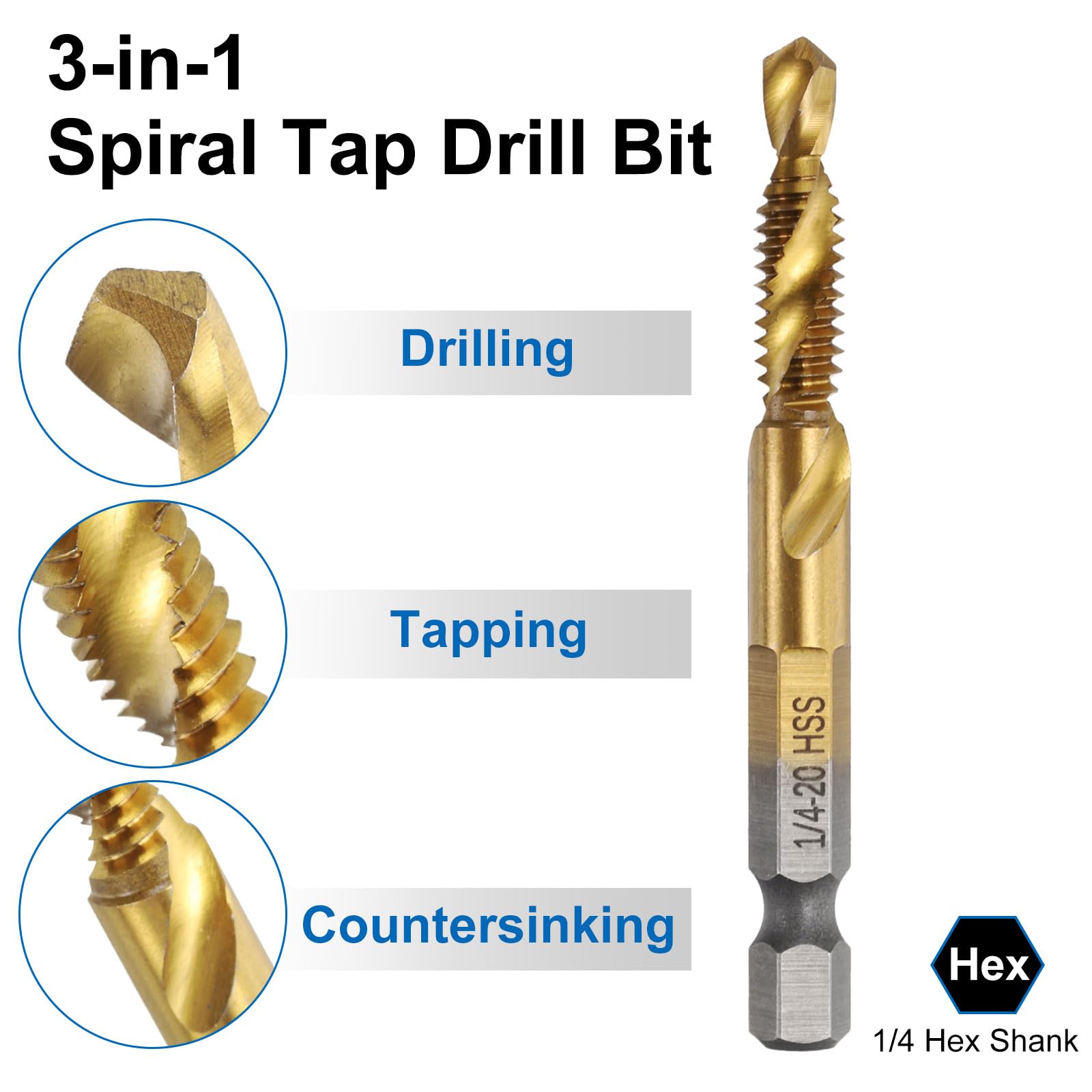

1. The 3-in-1 combination drill and tap bit set can complete hole drilling, tapping, and countersinking. Three processes in one, one-step operation, greatly saving processing steps, improving work efficiency, and providing accurate processing results.
2. Metric combination tap drill bit is used to create threaded holes, great for situations where both drilling and tapping are required. Can process both through holes and blind holes. Suitable for aluminum, mould steel, stainless steel, bronze, hard plastics.
3. Self-centering point, do not need assistant center drilling or center punching. Quick change 1/4-inch hex shank can be used on power tools more easily and securely. A tapered end on hex shank can prevent excessive tapping. It exceeds the tap to prevent thread breakage from over-drilling.

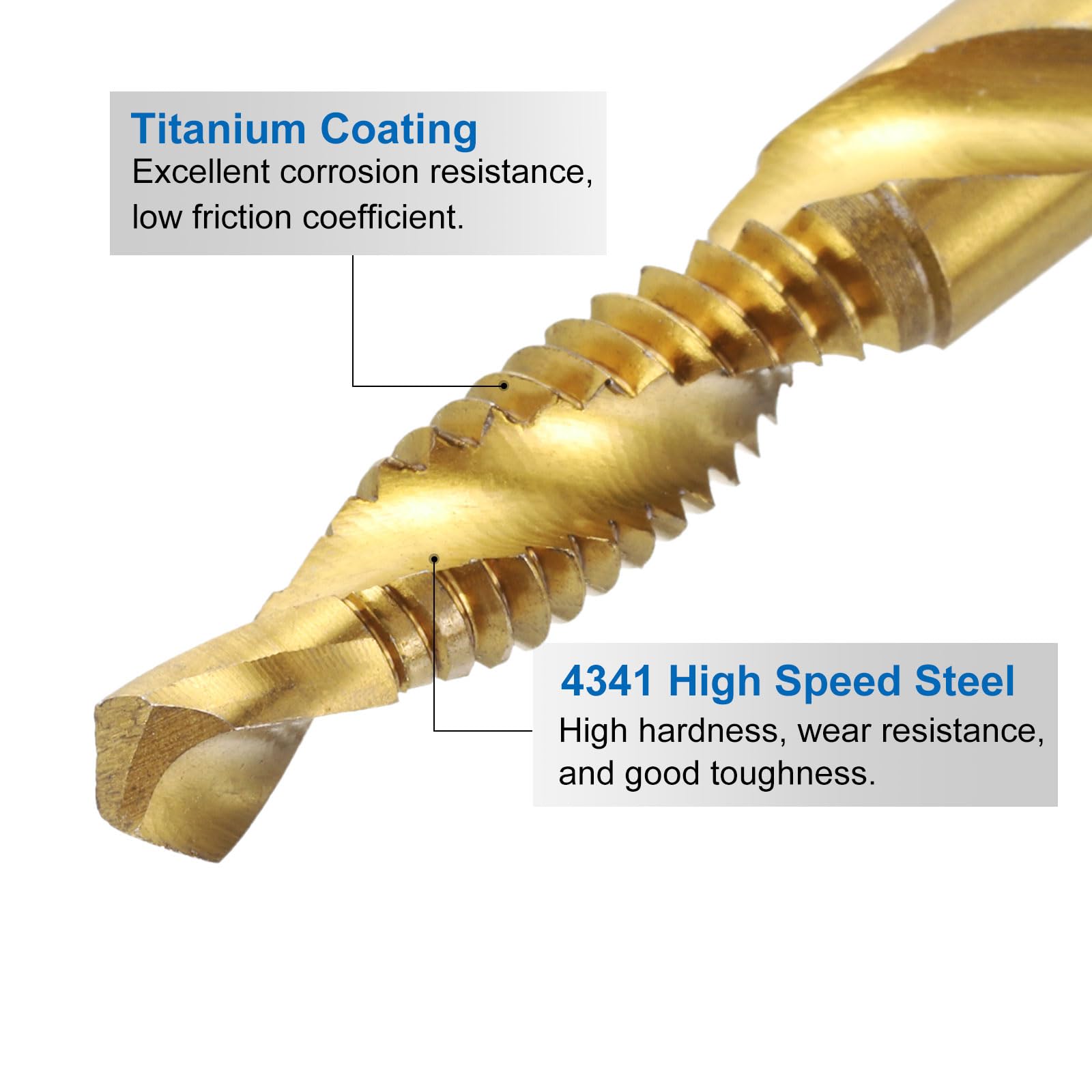

4. 4341 high-speed steel screw taps run at high speeds and generate threads quickly and efficiently, offering high hardness, wear resistance, and good toughness. Titanium coating provides excellent corrosion resistance, and reduces the coefficient of friction for smoother tapping.

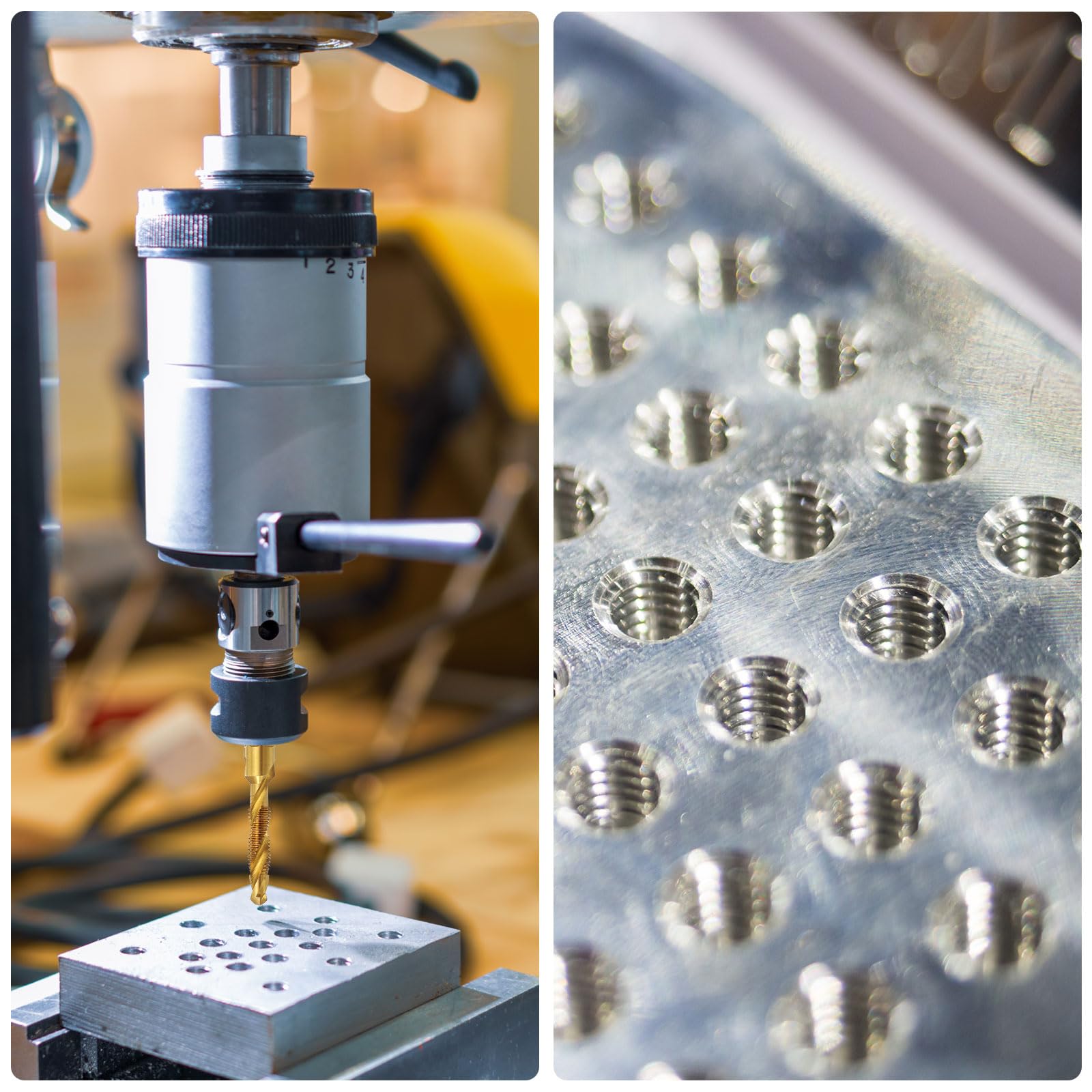

5. Works with drilling machines, tapping machines, CNC, and milling machines. Use with tapping oil to get higher quality threads and more durable taps. Machine taps are suggested to be used with tap collets with overload protection.
6. Tips: Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break. Taps are prone to chipping or breaking due to speed overload or non-vertical tapping.
| Main Specification | |
|---|---|
| Producătorul | uxcell |
| Număr de unități | 6 Număr |
| Recomandarea privind suprafața | Alloy Steel |
| Stil punct | Center Point |
| Shank Type | Hex |
| Tool Flute Type | Spiral |
| Marca | uxcell |
| Cutting Angle String | 125 degrees |
| Numărul de bucăți | 6 |
| Product information | |
| Numărul de ambalaje | 1 |
| Setează numele | uxcell 6pcs Combination Drill Tap Bit Set |
| Technical Details | |
| Numărul părții | a24071100ux1267 |
| Tip material | High-Speed Steel (4341) |
| Number of Flutes | 2 |
| Style | |
| Tipuri de finisare | Titanium |
| Others | |
| Tip de produs | Combination Drill & Taps |
| Minimum Bore Diameter | 0.75 inches |
