Replacement Updated Adjustable Igniter Bracket for certain Harman Pellet Stoves that call for a finned Ignitor, 1-00-777907
5 sold in last 24 hours
- New Version Replaces Part 1-00-06620 Igniter Bracket
- For Absolute 43 Igniter Bracket Use Part 1-00-777906
- Not sure if this is the correct part? Reach out through Amazon Messaging. We are here 7 days a week.
Estimated shipping

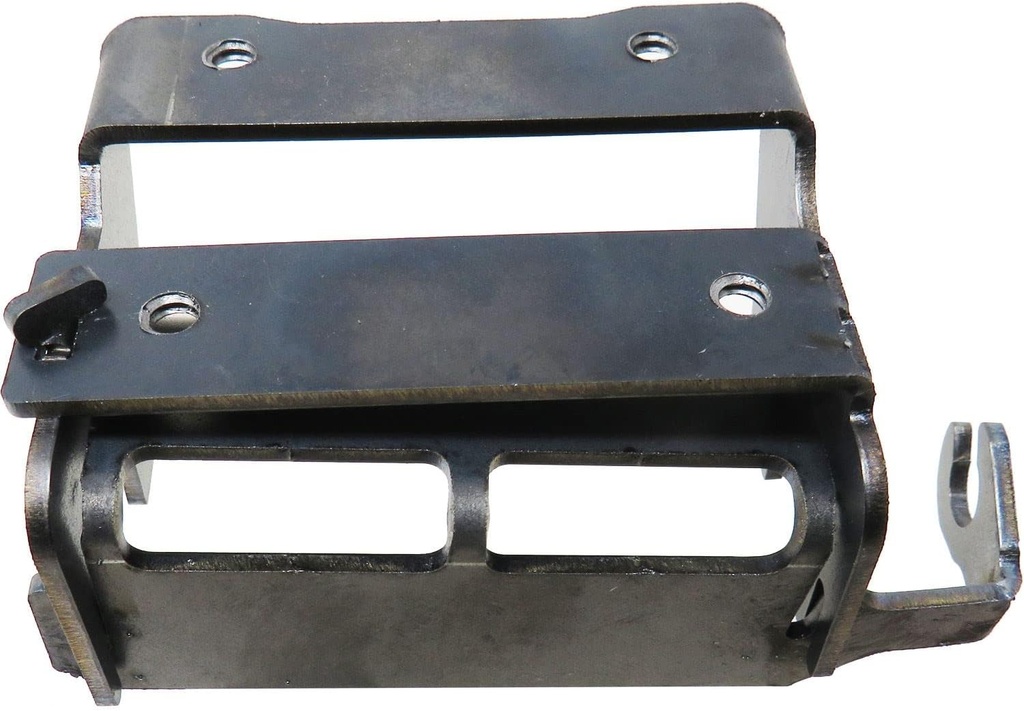

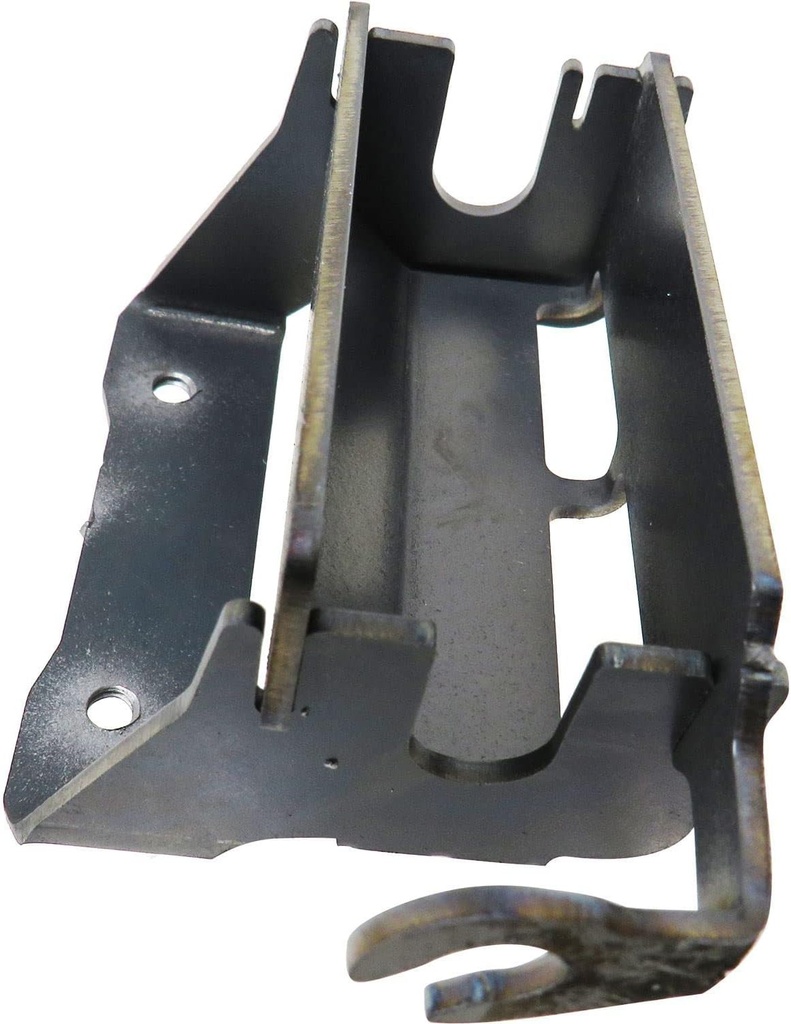

Select a product to estimate shipping.This igniter cradle has an adjustable depth and is the most recent design from Harmon for their finned ignition system. This cradle can be used anywhere the finned igniters are used and is backward-compatible for all models with auto-ignition that previously used part # 1-00-067620, which is being phased out by Harmon.
The screws that are included should be installed into the lower holes on the cradle mount. These screws cinch up the distance from the igniter element and the various depths of the various burn pots where this cradle is used.
This cradle is sold without mounting hardware and your existing screws must be reused or you can purchase new screws. Harmon uses this part 3-30-1101-100, QTY 2.
Notes:
Replacement For Part Numbers:
| Main Specification | |
|---|---|
| Efficiency | High Efficiency |
| Marca | Stove Parts 4 Less |
| Assembly Required | Yes |
| Product information | |
| Dimensiuni pachete | 4 X 4 X 4 Inches |
| Fuel Type | Pellet |
| Ventilation Type | Direct Vent |
| Technical Details | |
| Color | Black |
| Material | Alloy Steel |
| Material | Alloy Steel |
| Mounting Type | Freestanding |
| Item Weight | 8 Ounces |
| Others | |
| Tip de produs | Heating Stove |
