Fence Gate Hardware Kit, 8" Heavy Duty Strap Hinges and Spring Latch, Black
9 sold in last 24 hours
- Note: Installation of the latch and handle applies to the right door, for the left door you need to remove and install the latch again, the installation steps refer to the product details page
- High Quality: Wood gate hardware set made from durable steel, black finish,durable,sturdiness, smooth not rough and long-lasting use
- Easy Installation: Convenient wood fence gate hardware kit come with screws mounting hardware so installation is quick and easy
- Heavy Duty Gate Latch Kit: Wood gate latch opens from both sides, single handle for easy gripping and opening. Reversible pin allows for both right and left hand operation
- Wide Applications: With a work load limit of 60 pounds per fence hinge, ideal for barn door, garage door, screen door or fence gate, Fits a variety of applications

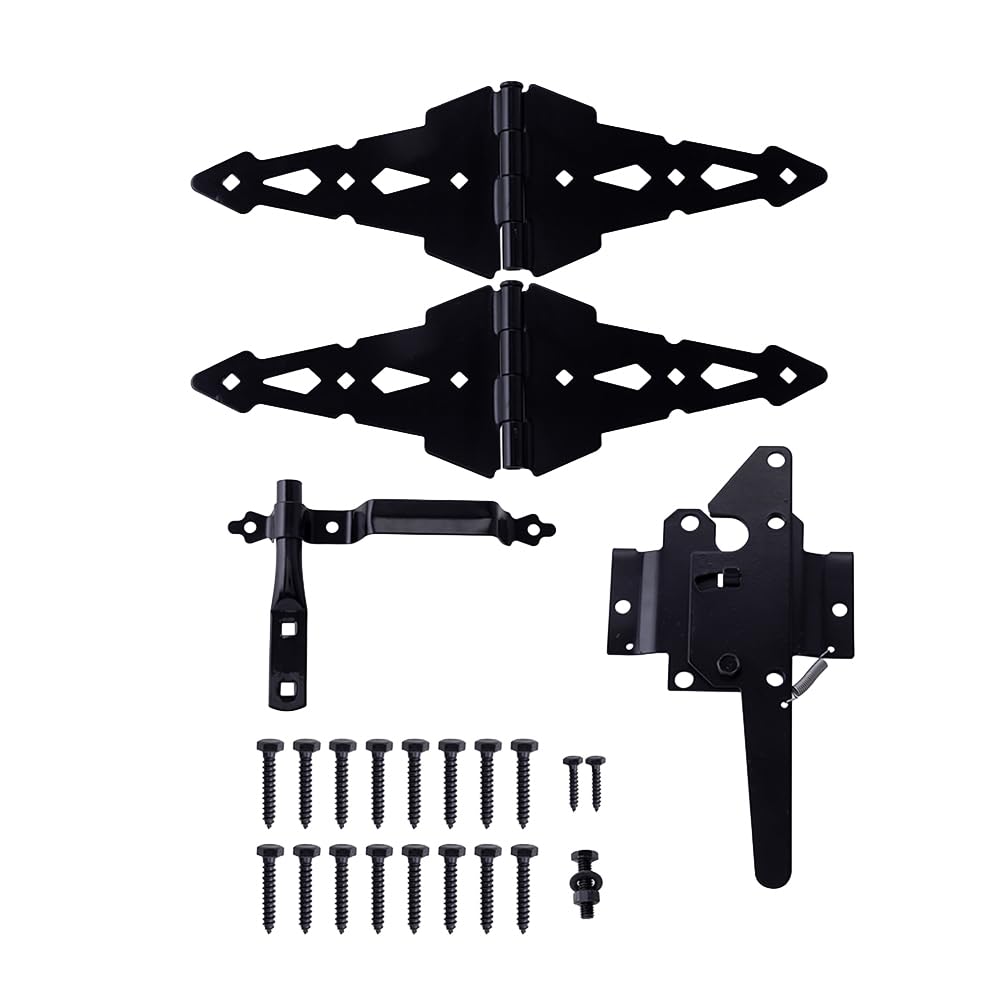

- Packaging Includes: Outdoor gate hardware kit package include 2 Pcs 8" decorative gate hinges, 1 Pcs wood gate latch,1 Pcs handle and mounted screw hardware
Tags |
Estimated shipping
Select a product to estimate shipping.To install latch & handle: When people stand inside the gate, the gate is pushed outward to open. Installation methods 1: Applicable right door opening
1. On the fence post, find the appropriate location for the latch and mark screw holes according to the height of personal use, tighten the screws.
2. Close the gate and install the keeper bar (the position of the keeper bar should be aligned with the position of the latch lock hole), mark the screw holes, and tighten the screws. (Keeper Bar should be parallel to the ground.)
3. Place the handle onto the keeper bar, mark the screw holes, and tighten the screws. Installation completed, please refer to figure 3.
Installation methods 2: Applicable left door openingThe latch needs to be removed and installed again. The method of removing and installing the latch is as follows:
1)Twist out (1) take down (3), the product is split into 4 parts. (As shown in Figure
2)Swivel assembly 4, and move it to the other side of (2) for assembly. (As shown in Figure
3)Reassemble the(1)and(3). (As shown in Figure 4)
4)Reassembly of the latch is complete.
Installation methods 2: Applicable left door opening
1.On the fence post, find the appropriate location for the latch and mark screw holes according to the height of personal use, tighten the screws
2.Close the gate and install the keeper bar (the position of the keeper bar should be aligned with the position of the latch lock hole), mark the screw holes,and tighten the screws.(Keeper Bar should be parallel to the ground.)
Product details
| Main Specification | |
|---|---|
| Producătorul | Home Master Hardware |
| Weight Limit | 60 Pounds |
| Număr de unități | 1 Număr |
| Marca | Home Master Hardware |
| UPC | 842001113040 |
| Numărul de elemente | 4 |

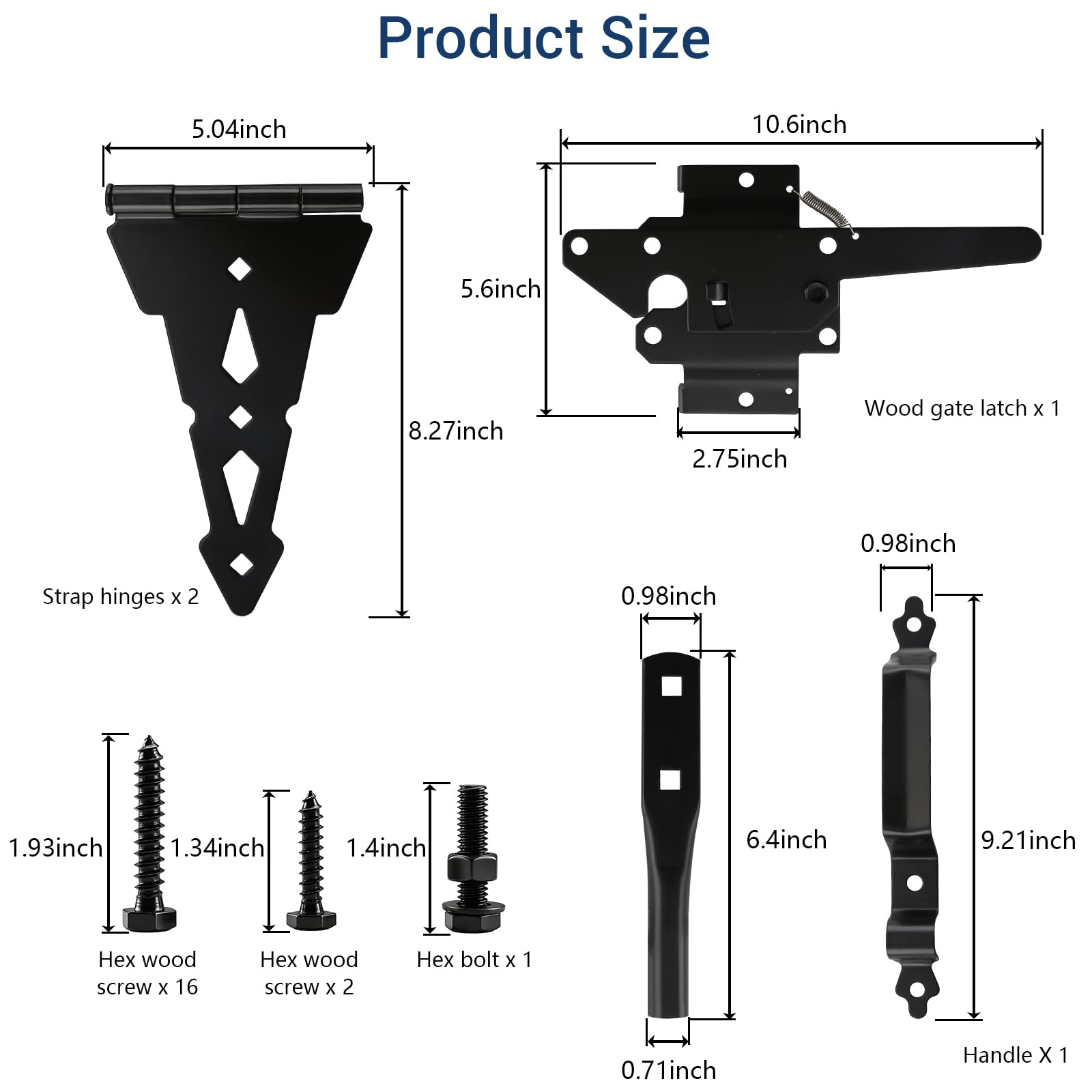

| Dimensiuni produse | 8"L X 6"W |
| Material | Oţel |
| Culoare | Negru |
| Tip de finisare | Finished |
| Tip de montare | Ușă Mount |
| Greutate element | 1,5 lire sterline |
| Product information | |
| Numărul de ambalaje | 1 |
| Product Dimensions | 8"L X 6"W |
| Finish Type | Finished |
| Technical Details | |
| Maximum Weight Capacity | 60 Pounds |
| Numărul părții producătorului | 842001113040 |
| Tip material | Oţel |
| Item details | |
| Număr model | 842001113040 |
| Style | |
| Tipuri de finisare | Finished |
| Others | |
| Tip de produs | Latches Gate |
| Dimensiuni element L x W | 8"L x 6"W |
